WFilter deployment with quidway S5012p switch

4.0

Author:

IMFirewall Software

HomePage:

http://www.imfirewall.us

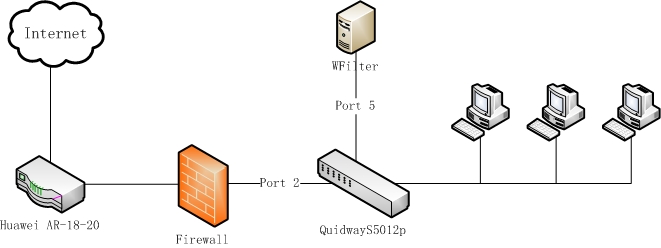

An goverment network topology as below: using Huawei AR-18-20 as the router, connectd with a hardware firewall. Huawei Quidway S5012P acts as the core switch. The network topology diagram:

Figure 1

Please follow below steps to configure port mirroring on quidway S5012p switch:

1. Set port 5 as the destination port:

[Quidway]monitor-port GigabitEthernet 0/5

2. Set port 2 as the source mirrored port:

[Quidway]mirroring-port GigabitEthernet 0/2

By now, you can monitor all computers internet activity in local network.

To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?

For more WFilter deployment examples, please check: WFilter Deployment Examples.
