WFilter deployment with linksys srw224G4 switch

4.0

Author:

IMFirewall Software

HomePage:

http://www.imfirewall.us

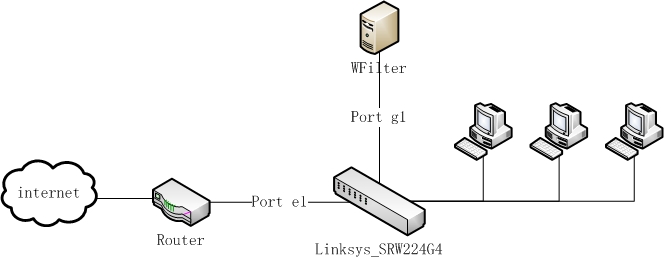

A company network is connected by a linksys srw224G4 switch, the network topology diagram:

Figure 1

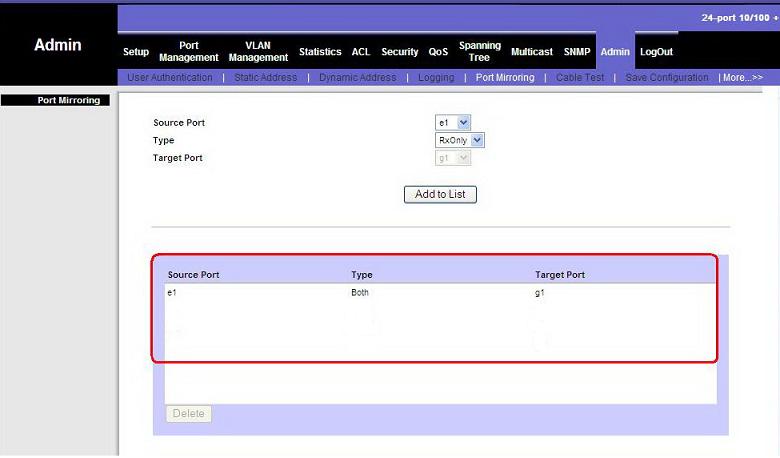

In this network, we only need to do port mirroring in the linksys srw224G4 switch to do monitoring and filtering. The below diagram shows the mirroring settings of the linksys switch:

Figure 2

As in the diagram above, port "e1" is connected to the internet router and port "g1" is connected to the WFilter computer.

To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?

For more WFilter deployment examples, please check: WFilter Deployment Examples.
